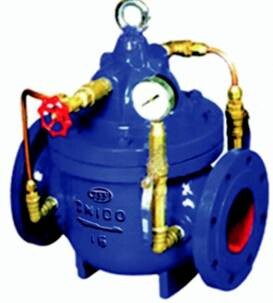

Product introduction
Technical Specification/技術規格
- Size/規格：DN40-DN600
- End/連接法蘭：ISO PN6/10/16
- Face to Face/結構長度：DIN3202 F1
- Work pressure/工作壓力：PN16
- Work Temperature/工作溫度：-20℃～100℃
Structure Character/結構特點
- Small volume, light weight, integrated structure.
- Suitable in horizontal and vertical direction installation,easy installation.

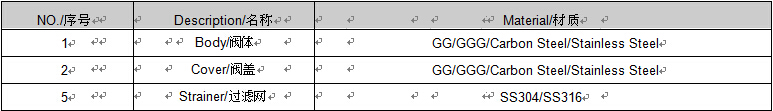

Main Components and Materials/主要零件和材質

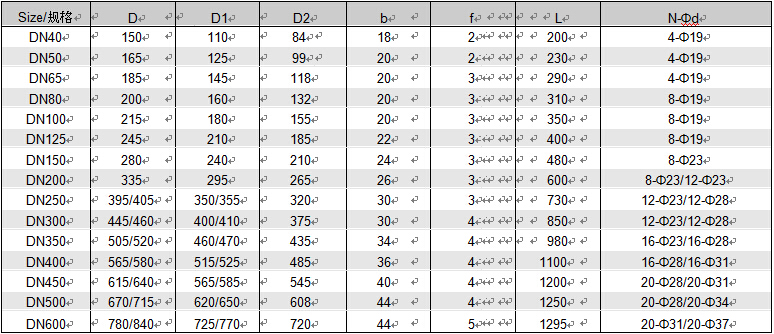

Dimensions/尺寸
