Technical Specification/技術規格

- Size/規格：DN65-DN3600
- End/連接法蘭：ISO PN6/10
- Work pressure/工作壓力：PN6/PN10
- Work temperature/工作溫度：0℃～80℃

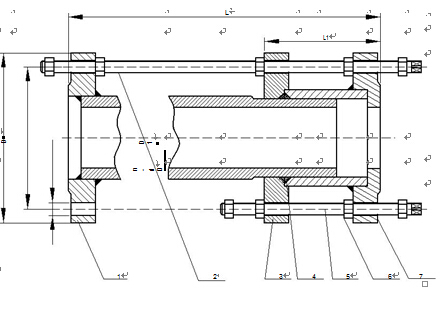

Structure Character/結構特點

- Limit expansion joint is composed by body, sealing ring and limited short pine, etc.
- It is able to extend and compress in some extent to fit pipeline dimension and it can absorb axial displacement due to pipeline expansion and contraction, and lateral displacement and pipeline angularity.
- Limit expansion joint provides great convenience to the detachment and installation of valve and pipe.

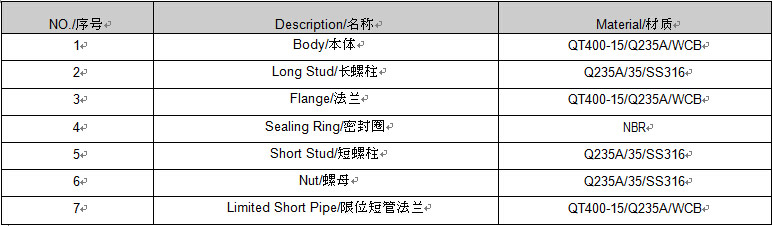

Main Components and Materials/主要零件和材質

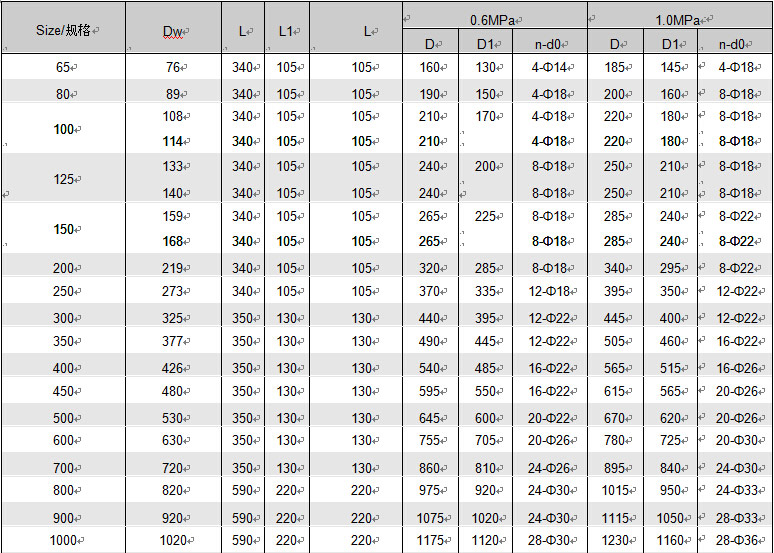

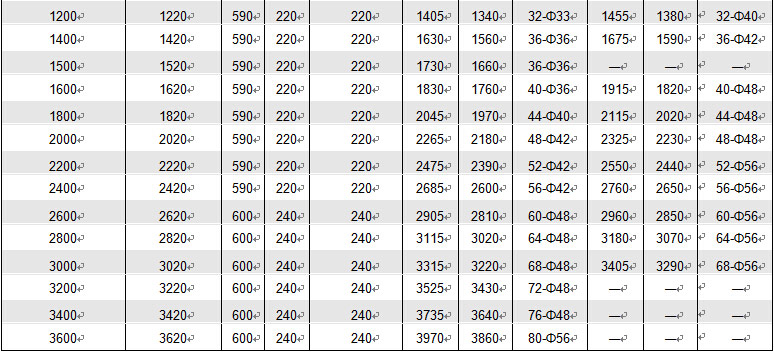

Dimensions/尺寸
