Product introduction
Technical Specification/技術規(guī)格
- Size/規(guī)格：DN50-DN300
- End/連接法蘭：ISO PN6/10/16- Work pressure/工作壓力：PN16
- Work Temperature/工作溫度：-20℃～80℃
Structure Character/結構特點
- Small volume, light weight, integrated structure.
- close quickly, low water hammer pressure.
- Suitable in horizontal and vertical direction installation, easy installation.
- low fluid resistance
- quick closing, full tightness.

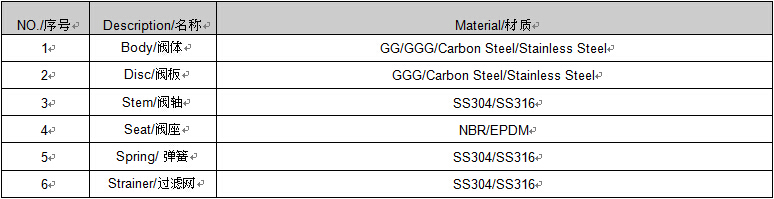

Main Components and Materials/主要零件和材質(zhì)

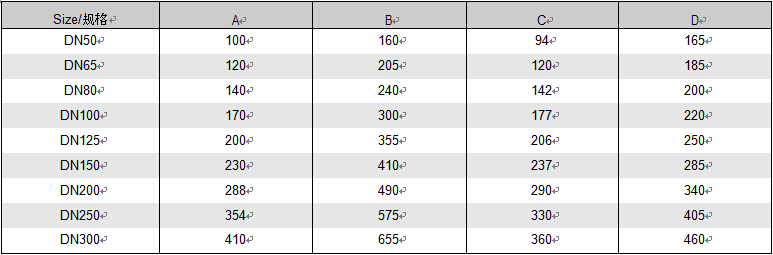

Dimensions/尺寸
