Technical Specification/技術規格

- Size/規格：DN32-DN500
- End/連接法蘭：ISO PN6/10/16
- Work pressure/工作壓力：PN10/PN16
- Work temperature/工作溫度：-20℃～110℃

Structure Character/結構特點

- Rubber Joint is suitable for various pipeline. it is capable of absorbing vibration and movement in pipeline components.
- Joints are also able to absorb axial displacement due to pipeline expansion and contraction, and lateral displacement and pipeline angularity. "
- Joint use polar rubber. It's heat-proof, friction resistant and aging resistant.

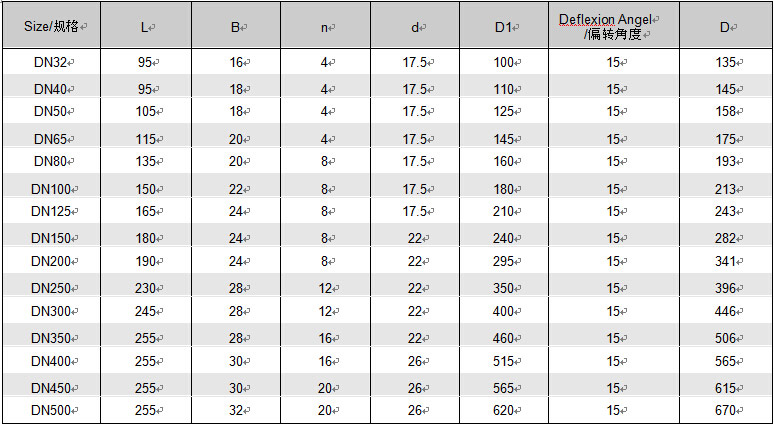

Dimensions/尺寸
