Technical Specification/技術規格

- Size/規格：DN100-DN2000

- Design/設計標準：BS5155
- End/連接法蘭：PN6/10/16/ANSI150
- Top Flange/頂法蘭：ISO5211
- Face to Face/結構長度：ISO5752-13/14
- Work Pressure/工作壓力：PN6/PN10/PN16

- Work Temperature/工作溫度： NBR-26℃～80℃  EPDM-26℃～120℃  VITON-30℃～160℃

Structure Character/結構特點

- Perfect design, Integrated structure, easy assembly and disassembly, convenient maintenance.
- Eccentric structure eliminates the abrasion and prolong life cycling.
- Apply "T" design of disc sealing ring. The sealing pair is linear sealing.
- Full tightness, Zero leakage.
- Different material for different working medium and temperature.

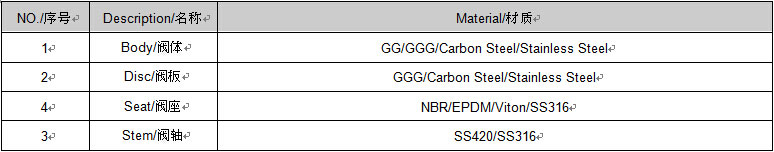

Main Components and Materials/主要零件和材質

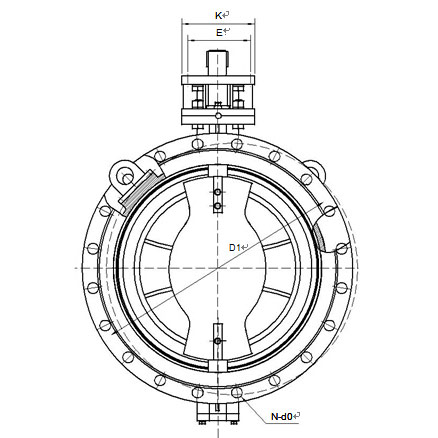

Dimensions/尺寸
